POS Screen Extension Tools ​

The POS Screen Extension Tools provide a specialized framework for extending the Odoo Point of Sale (POS) interface. This utility automates the generation of complex OWL components required for POS customization, ensuring framework compliance and seamless asset registration.

How to Use ​

To extend a POS screen:

  1. Right-click on a valid Odoo module directory in the VS Code explorer.
  2. Select Assista Odoo -> POS Components -> Extend Screen.
  3. Choose the target screen from the available POS Screen Templates.

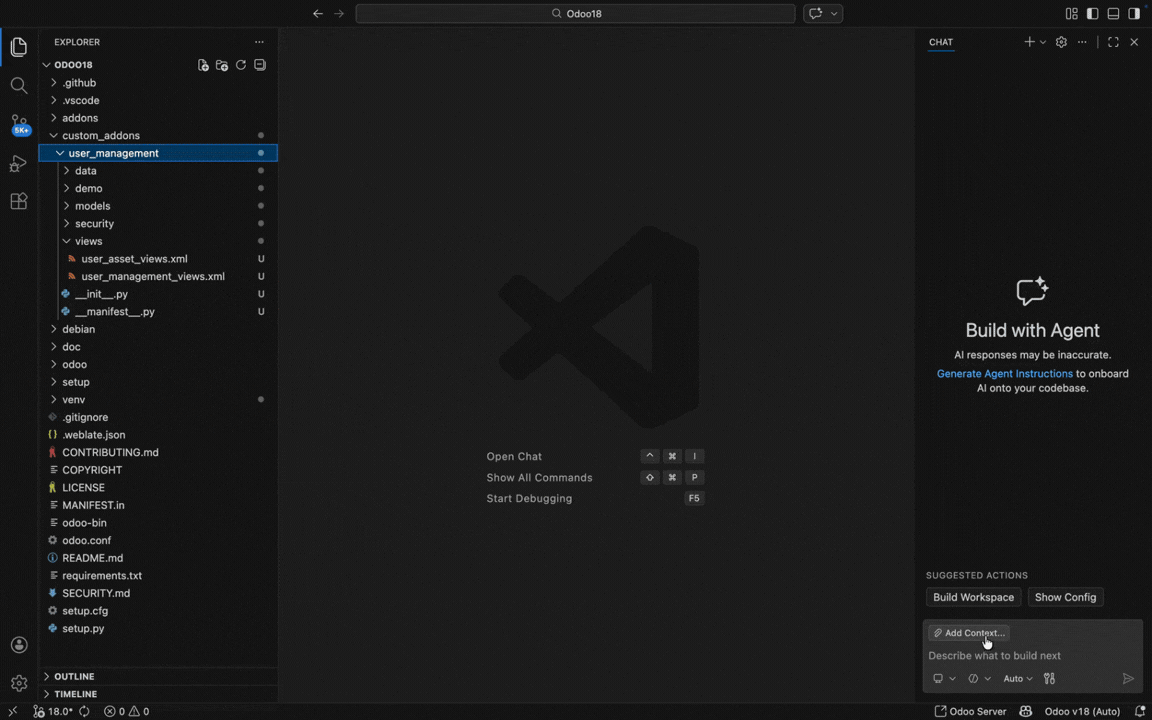

POS Screen Extension Demonstration

System Automation ​

Upon selection, the plugin performs the following automated tasks:

  • File Generation: Creates a synchronized set of .js, .xml, and .scss files.
  • Boilerplate Injection: Injects ready-to-use sample content, such as functional buttons or container elements, into the selected screen.
  • Manifest Registration: Automatically adds the new files to the point_of_sale.assets bundle in __manifest__.py.
  • Dependency Resolution: Scans the __manifest__.py and adds 'point_of_sale' to the depends list if it is not already present.

Technical Structure (All Screens):

text
module_root/
└── static/
    └── src/
        └── app/
            └── screens/
                └── screen_name/
                    ├── screen_name.js
                    ├── screen_name.xml
                    └── screen_name.scss

Supported POS Screen Templates ​

The extension provides dedicated scaffolds for the primary functional areas of the Odoo POS:

1. Product Screen ​

Customizes the main sales interface where products are selected.

  • Purpose: Adding custom product filters, action buttons, or information panels to the primary sales view.

2. Partner List Screen ​

Extends the customer selection and management interface.

  • Purpose: Enhancing customer search logic or adding custom fields to the partner selection form within POS.

3. Payment Screen ​

Modifies the checkout and payment processing interface.

  • Purpose: Integrating custom payment provider UI elements or adding validation logic before finalizing orders.

4. Receipt Screen ​

Customizes the post-checkout order confirmation and receipt view.

  • Purpose: Adding custom branding, QR codes, or promotional data to the printed and digital receipts.

5. Order Management Screen ​

Extends the historical order lookup and management interface.

  • Purpose: Implementing custom order filtration or adding specific management actions for existing orders.

For technical specifications on the POS architecture, refer to the Odoo POS Framework Guide.
